• Distributor: Mill City Roasters, USA/China
  • Machines: Various (see below)
  • Connection: Phidgets / MODBUS RTU via USB
  • Features: logging of bean temperature (BT), environmental temperature (ET) and inlet temperatue as well as gas level, drum speed and air flow on most machines. Some machines support the control of air flow, drum speed and burner level.

Watch out! Mill City Roasters has never supported the Artisan project like many of the manufacturers here. For that reason, we are unable to offer support for your specific roaster, especially if it differs from the included one-click machine setups. Please contact Mill City Roasters for support if you encounter setup issues.

Supported Machines

Watch out! For some machines there are two setups. One for machines configured to report temperature data on their controls in Celsius (marked with C) and one for those reporting it in Fahrenheit (marked with F).

  • Digital Control Panel - 1120control
    (1.5kg to 60kg, 2018 – Present)
    Mill City Roasters >> Digital Control Panel 1120
    • BT (bean temperature)
    • ET (environmental temperature)
    • IT (incoming air temperature)
    • DT (drum temperature)
    • burner (0-350 daPa)
    • air flow (0-60 Hz)
    • drum speed (0-60 Hz)
    • burner control
    • fan control
    • drum speed control

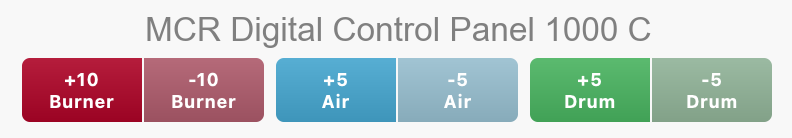

  • Digital Control Panel - 1000 control
    (1.5kg to 60kg, 2018 – Present)
    Mill City Roasters >> Digital Control Panel 1000
    • BT (bean temperature)
    • ET (environmental temperature)
    • IT (incoming air temperature)
    • burner (0-350 daPa)
    • air flow (0-60 Hz)
    • drum speed (0-60 Hz)
    • burner control
    • fan control
    • drum speed control
  • Standard Control Panel (Fotek)
    (500g to 3kg, 2020 – Present)
    Mill City Roasters >> Standard Control Panel (Fotek)
    • BT (bean temperature)
    • ET (environmental temperature)
    • DT (drum temperature)
    • air flow (0-60 Hz)
  • Standard Control Panel (Delta)
    (500g to 3kg, 2020 – Present)
    Mill City Roasters >> Standard Control Panel (Delta)
    • BT (bean temperature)
    • ET (environmental temperature)
    • DT (drum temperature)
    • air flow (0-60 Hz)
  • Phidget & Delta controls (port on the right side of the control panel)
    (6kg to 15kg, 2013 – 2018)
    Mill City Roasters >> Phidget & Delta controls (port on the right)
    • BT (bean temperature) from Phidget 1048 channel 0 (k-type)
    • ET (environmental temperature)
    • IT (incoming air temperature)
    • XT (exhaust temperature)
    • burner (0-350 daPa)
    • air flow (0-60 Hz)
    • drum speed (0-60 Hz)
  • Phidget & Delta controls (port on the back of the machine)
    (2017 / 2018)
    Mill City Roasters >> Phidget & Delta controls (port on the back)
    • BT (bean temperature) from Phidget 1048 channel 0 (k-type)
    • ET (exhaust temperature) from Phidget 1048 channel 1 (k-type)
    • IT (incoming air temperature) from Phidget 1048 channel 2 (k-type)
    • burner (0-350 daPa)
    • air flow (0-60 Hz)
    • drum speed (0-60 Hz)
  • Phidget & Shihlin controls (port on the back of the machine)
    (2017 / 2018)
    Mill City Roasters >> Phidget & Shihlin controls (port on the back)
    • BT (bean temperature) from Phidget 1048 channel 0 (k-type)
    • ET (exhaust temperature) from Phidget 1048 channel 1 (k-type)
    • IT (incoming air temperature) from Phidget 1048 channel 2 (k-type)
    • burner (0-350 daPa)
    • air flow (0-60 Hz)
    • drum speed (0-60 Hz)
  • Phidget
    (6kg to 20kg, 2013 – 2018; 500g to 3kg, 2019 – Present)
    Mill City Roasters >> Phidget
    • BT (bean temperature) from Phidget 1048 channel 0 (k-type)
    • ET (exhaust temperature) from Phidget 1048 channel 1 (k-type)
    • IT (incoming air temperature) from Phidget 1048 channel 2 (k-type)

Updated:
